Technical Specifications

(CLICK HERE FOR A DOWNLOADABLE TECHINCAL SPEC)



GET-IN

Via stage door – Double doors 1.60m wide x 2.00m high

Free Parking with access to stage door, all at floor level.



STAGE DIMENSION

End on, flat stage with semi-sprung wooden floor.

The stage is 10.50m wide x 7.20m deep (without tabs, wings or masking).

The acting space is 7.00m wide x 6.50m deep.

The lighting grid is 4.10m high. The ceiling is 5.10m high.



MASKING

Black front tabs operated manually from stage-right.

Black centre curtain operated manually from stage-right. (£25 charge)

Soft black legs and black or white backcloth which hangs 0.65m from the back wall.

Star cloth also available at extra cost (must be pre ordered)



AUDITORIUM

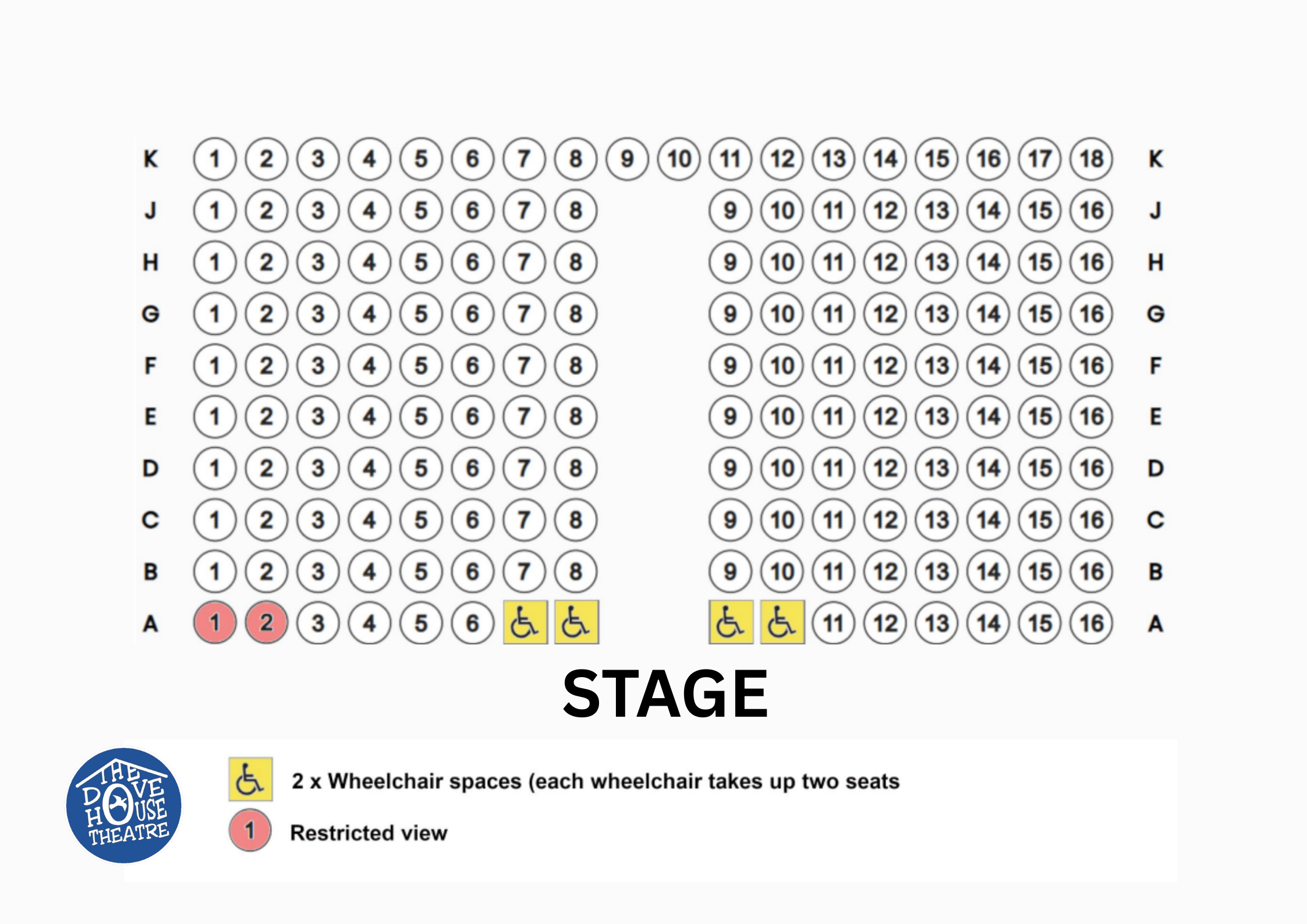

Raked retractable seating with a maximum capacity of 158.

(CLICK HERE FOR A SEATING PLAN)



LIGHTING CONTROL

ETC Gadget II NOMAD Computerised Lighting control.

Zero88 Fat Frog 24/48 lighting desk (DMX) (back-up desk)

3 x 32amp 6 channel Zero88 Betapack2 DMX dimmers



LANTERNS

4 x Pat 743 1kw Fresnels

14 x Quartet 500w Fresnels

5 x Quartet 500w Profiles

2 x ETC Source Four Jnr Profiles

6 x Par 64 Parcans

LED RGBA fixed back wash

LED RGB fixed front wash

LED RB fixed side wash



MAC Entour moving heads available at extra cost (must be pre ordered)

UV canon available at extra cost (must be pre ordered)

Strobe available at extra cost (must be pre ordered)





SOUND CONTROL

1 x Allen & Heath PA20 (inc. onboard effects)

1 x Behringer x32 digital mixer – available at extra cost (must be pre ordered)

1 x Behringer Ultra-Graphic 31 band graphic equalizer.

Computer running Multi-play

CD player

Mini-disc player

AUX for iPod, MP3 player, laptop, tablet, phone etc.

Tape deck

USB reader (reads MP3 & WAV)

24 channel (4 returns) multicore situated stage-right.

8 x DI box

A selection of 5m & 10m XLR cables



MAIN PA

EV 500W per side

Mackie 1600W per side tops/mids/full range (active) (must be pre ordered)

Mackie 1200W per side subs (active) (must be pre ordered)

2 x grid suspended monitors

2 x 300W stage monitors



MICROPHONES

3 x Sure SM58

2 x Sure PG58

3 x AKG C568EB rifle mic

7 piece drum kit mics

Radio mics – head worn/handheld – available at extra cost (must be pre ordered)



STAGING

40 x 75cm x 75cm x 49cm connectable stage blocks.

9 x 75cm x 75cm x 39cm connectable stage blocks.



COMMUNICATION

3 x headset communication packs.



PROJECTION – available at extra cost

12 x 9ft fast fold screen

White back cloth

Projector operated via VGA from the technical desk or from stage-right

Laptop can be made available on request



Stock may vary due to maintenance.

Additional equipment can be hired in.



Below is a list of our most hired equipment:

Radio Microphones = £60 each

Cable Microphones = (4 free) then £8 each

Onstage Monitors = £25 a pair

Star Curtain = £80

Projector & Screen = £35

Smoke/Haze Machine = £40

UV Light = £25

Strobe = £25

Intelligent Lighting (Mac Entour 250) = £60 each

Mirror Ball = £15

Follow Spot = £15
